Clear Acrylic Sheet 7.87"×11.81" (200×300mm) – Extruded PMMA 2–5mm
Standard shipping included
Quality issue support
Fast & reliable support
Secure payment
Standard shipping is included in the price of listed standard-size products. Contact us for expedited shipping or delivery arrangements for custom or oversized orders. Returns are accepted for quality problems under our refund policy, without limiting applicable statutory rights.
- 3mm - $29.47
- 2mm - $27.28
- 5mm - $32.13
- 4mm - $33.16
PRODUCT DETAILS

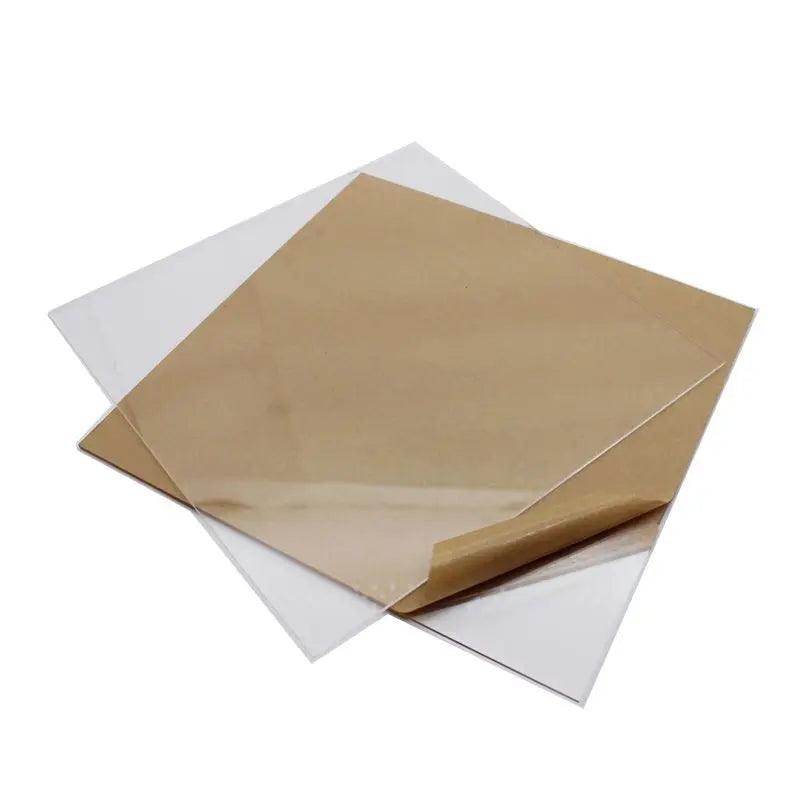

Clear Extruded Acrylic Sheet 200 × 300 mm (7.87 " × 11.81 ") – Transparent PMMA Panel for Laser-Cut DIY, Signage & Protective Screens
🔑 Why This Sheet Beats Glass & Cheap Plastics
- Crystal-clear transparency ≈ 92 % light-transmission – perfect for display cases, lightboxes and see-through guards.
- Shatter-safe & impact-resistant – 5-7 × tougher than glass yet half the weight; ideal for RC enclosures, shop barriers, school projects.
- Laser-cut edges come out smooth (CO2 / diode), no post-polish needed for most hobby work.
- Thermo-form & bend at ~150 °C; holds shape without whitening, great for light channels & engineering prototypes.
- UV-stable PMMA – resists yellowing in outdoor signage far better than cheap PVC.
- Custominsul Advantage: 1–12 mm thickness options, custom machining within ±0.15 mm, fast global shipping, and expert support that saves you tooling cost.
📏 Quick-View Specs (per sheet)

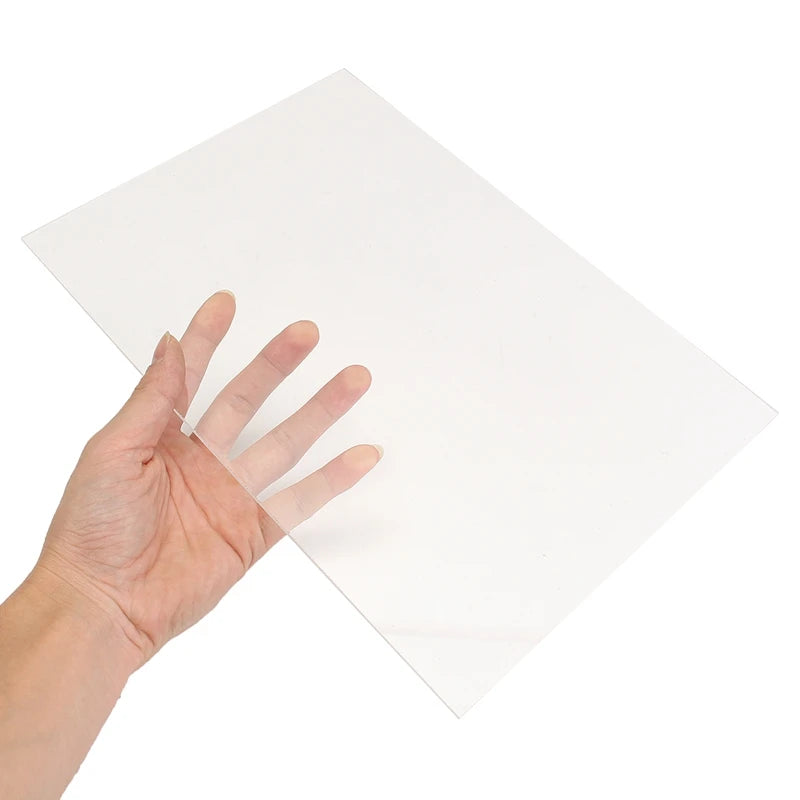

- Nominal size: 200 mm × 300 mm (7.87 " × 11.81 ")
- Available thicknesses: 1 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12 mm
- Weight example: 3 mm sheet ≈ 0.21 kg (0.46 lb)
- Protective film: both sides, easy-peel PE
- Precision cutting tolerance: ±0.5 mm length × ±0.3 mm width
📊 Technical Data
| Property | Typical Value | Test Method |
|---|---|---|
| Light transmittance | ≈ 92 % | ASTM D1003 |
| Density | 1.19 g / cm³ | ASTM D792 |
| Vicat softening point | ≈ 110 °C | ASTM D1525 |
| Tensile strength | ≥ 70 MPa | ASTM D638 |
| Service temperature | -40 °C to +80 °C | — |
| Flammability | HB (UL 94) | — |
🛠️ Fabrication & DIY Tips
• Cutting: Jigsaw with fine-tooth blade, CO2 laser < 100 W, or CNC router (O-flute).
• Drilling: Use acrylic bit, RPM ≤ 2 000 rpm, back with MDF to avoid chip-out.
• Bending: Evenly heat to 150 °C; support until cool for crisp folds.
• Bonding: Solvent cements (dichloromethane), UV adhesives, or mechanical fasteners.
• Finishing: Flame-polish edges for glass-like clarity; wet-sand progressively 400 → 2 000 grit before buffing.
🎯 Ideal Applications
- DIY laser-cut projects – LED light guide plates, mini greenhouses, cosplay visors
- Shop & office sneeze guards, POS display risers, brochure holders
- 3D-printer build enclosures, CNC machine viewing windows
- Custom signage & menu boards – UV / screen printing ready
- Model-making, architectural prototypes and aquarium lids
📦 Packaging, Shipping & MOQ
- Packed flat with corner guards + double-wall carton; bulk orders get plywood crate.
- Free standard shipping on retail packs; DHL / FedEx upgrade 3 – 5 days available at checkout.
- No MOQ for listed thicknesses – buy from 1 sheet up. Volume pricing kicks-in at 10 / 50 / 200 pcs (auto discount).
❓ FAQ – We’ve Got You Covered
Will the edges arrive polished?
Sheets ≤ 5 mm ship with saw-cut edges to save cost; opt for “Edge-polish” at checkout or message us for laser cut upgrade.

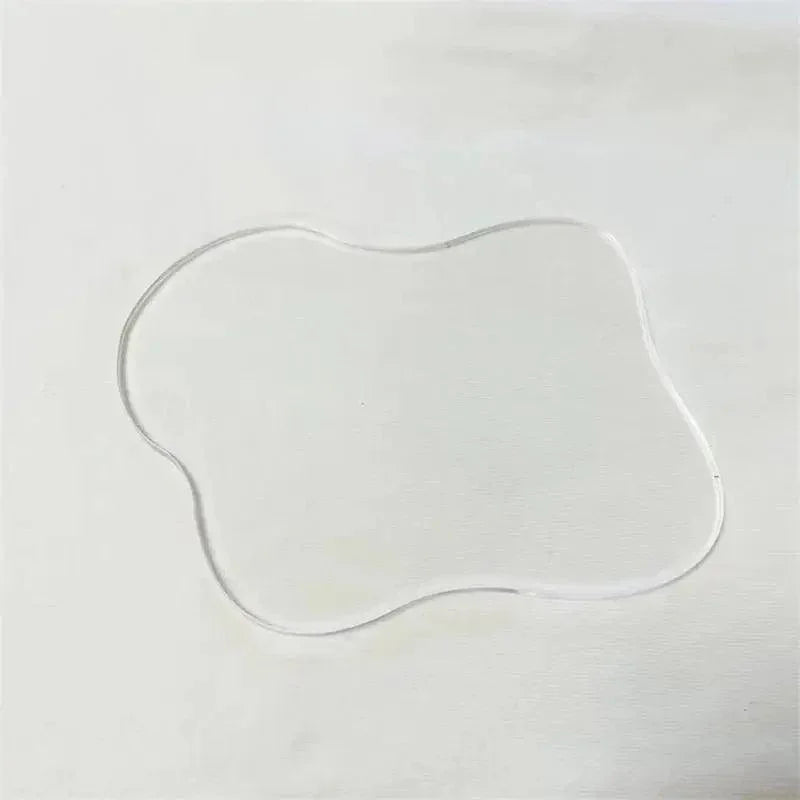

Can I order custom size holes or rounded corners?
Absolutely. Click “Get Custom Quote” below, upload your drawing (DXF / STEP / PDF) and our engineers will confirm within 1 business day.
Is this suitable for outdoor use?
Yes – UV-stable for 3–5 years vertical exposure. For long-term façade glazing, consider our cast acrylic UV-plus.
How accurate is the thickness?
Extruded PMMA varies ±5 % (e.g., 5 mm → 4.75-5.25 mm). Need tighter tolerance? Ask for cast grade (±2 %).
🚀 Ready to Build? – Add Sheets to Cart Now
Harness crystal-clear strength for your next project today. Stock items are dispatched promptly after order confirmation.
🛠️ Need Custom-Cut Acrylic or Bulk Pricing?
Click “Chat with an Engineer” or email Custominsul@Custominsul.com with your drawing – we’ll CNC/laser cut, polish, drill or brand your parts fast and cost-effectively. Turnkey production from 1 pc to 10 000 pcs.
